Quick Model Selection
| Input | |||||||
| AC ( Y ) 277/480 VAC | AC ( Y ) 240/415 VAC | AC ( Δ ) 208 VAC | - 48 VDC | +380 VDC | |||
| Output | +12VDC | Triple Busbar Straight | SPSPFE3-05G | SPSPFE3-15* | SPSPFE3-09 | SPSPFF3-03* | SPSPFE3-13* |
| Single Busbar Straight | SPSPFE3-06G | SPSPFE3-16* | SPSPFE3-10 | SPSPFF3-02* | SPSPFE3-12* | ||
| Single Busbar Offset | SPSPFE3-08 | SPSPFE3-14* | SPSPFE3-11 | SPSPFF3-01 | SPSPFE3-07 | ||
| +48VDC | Single Busbar Offset Short | SPSTET4-01 | SPSTET4-11 | SPSTET4-03* | N/A | SPSTET4-04* | |
| Single Busbar Offset Long | SPSTET4-07 | SPSTET4-12 | - | N/A | - | ||
| Single Busbar Straight Long | SPSTET4-09 | SPSTET4-13 | - | N/A | - | ||
| Triple Busbar Straight Long | SPSTET4-08 | SPSTET4-14 | - | N/A | - | ||
| +380VDC | Connector Type | SPSTET4-05* | - | SPSTET4-06* | - | N/A | |
Complete Solutions
Brochures
Power Conversion Solutions for Data Centers Brochure

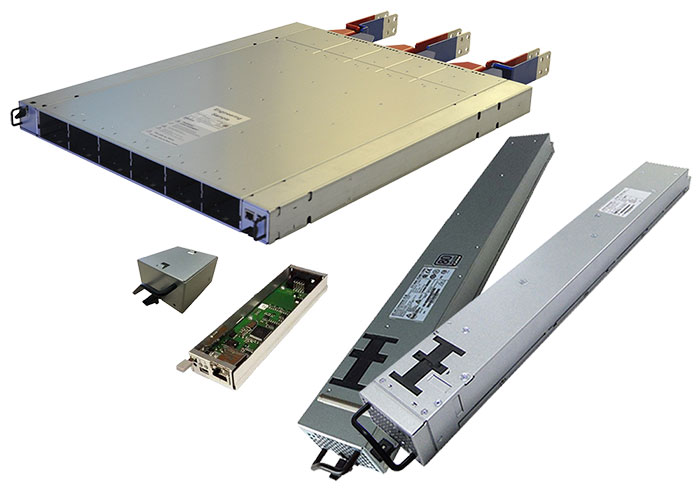

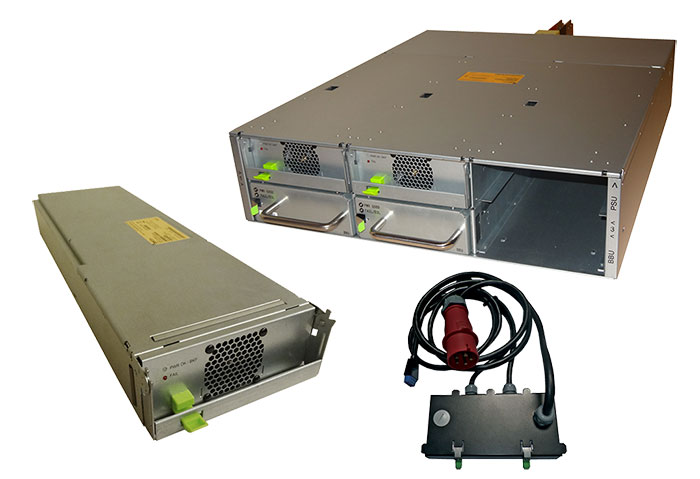

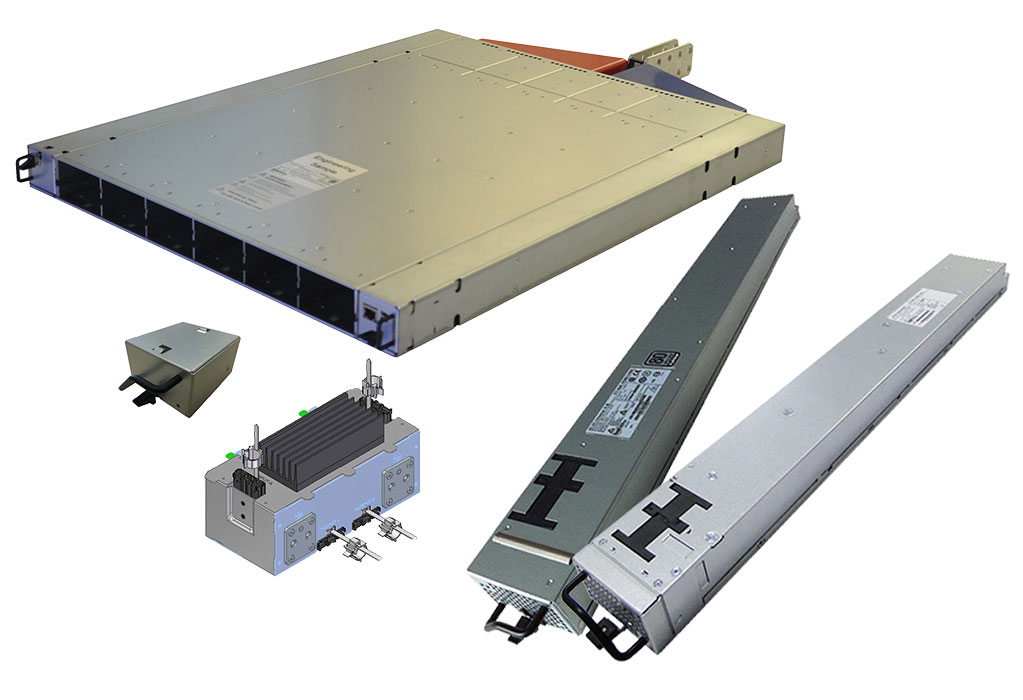

Bel Power Solutions offers a variety of power shelves, power supply units, AC and DC power distributions units, system controllers and cable harnesses to address AC and DC, 12 Vout and 48 Vout power conversion needs from the PDU to the CPU.
Read MoreApplying Power Specifications to New and Existing Data Centers
Application note with additional information for applying open compute rack and power specifications to new and existing data centers.
