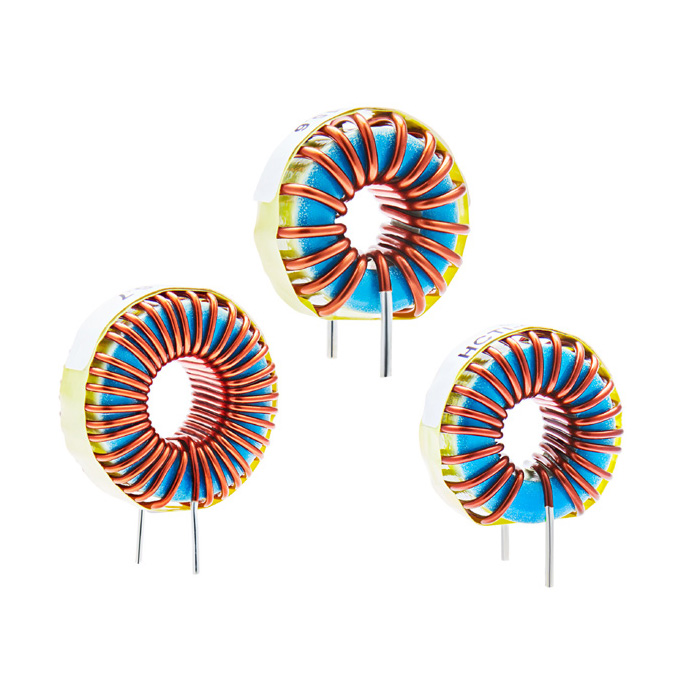

High Current Toroidal Inductors (HCTI) are vertical PCB mounted, high-frequency magnetics with a broad inductance and current range. Although offered as standard catalog items within this range, versions can be designed for custom inductances, with 2 or 4 pin headers, or horizontal mount and are also available in a design kit.

Specifications

  • Operating Temperature: -55ºC to 105ºC
  • Inductance: 10μH - 1000 μH @ 0 ADC
  • DC Rated Current: 2.4 A to 20.0 A
  • Class B Insulation
  • RoHS and REACH Compliant
  • 1.28" Max Height, 0.65" Max Width

Features

  • Design Kit Available
  • Higher Efficiency through reduced core loss
  • Low Magnetic Radiation from self-shielding
  • High Energy Storage with distributed air gaps
  • Lower Temperature Rise with high current density
  • Vertical PC mounting for optimal PC layout

Email Form

SPECIFICATIONS

High Current Toroidal Inductors (HCTI) are vertical PCB mounted, high-frequency magnetics with a broad inductance and current range. Although offered as standard catalog items within this range, versions can be designed for custom inductances, with 2 or 4 pin headers, or horizontal mount and are also available in a design kit.

Specifications

  • Operating Temperature: -55ºC to 105ºC
  • Inductance: 10μH - 1000 μH @ 0 ADC
  • DC Rated Current: 2.4 A to 20.0 A
  • Class B Insulation
  • RoHS and REACH Compliant
  • 1.28" Max Height, 0.65" Max Width

Features

  • Design Kit Available
  • Higher Efficiency through reduced core loss
  • Low Magnetic Radiation from self-shielding
  • High Energy Storage with distributed air gaps
  • Lower Temperature Rise with high current density
  • Vertical PC mounting for optimal PC layout
