3-Phase WYE, 480 Vin, 12 Vout, AC-DC Power Shelves
3-Phase WYE, 480 Vin, 12 Vout, AC-DC Power Shelves

DATASHEET


3-Phase WYE, 480 Vin, 12 Vout, AC-DC Power Shelves

Share

SPSPFE3-0XG power-shelf solutions provide rectification, system management, and power distribution, while maintaining high reliability and offering flexibility for future expansion. The power shelf can be configured with up to six hot-swap capable PFE3000-12-069RA AC/DC-DC power supplies that convert 3-phase (3W+N+PE) AC mains power into a main output of 12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The shelf… Read More +

Specifications

  • Up to six slots for PFE3000 / PFE3600 / TET3000 PSUs (up to 18 kW)
  • Two 3-Phase inputs (3W+N+PE), one AC inlet powers 3 power modules
  • Input voltage of 200-277 / 346-480 VAC

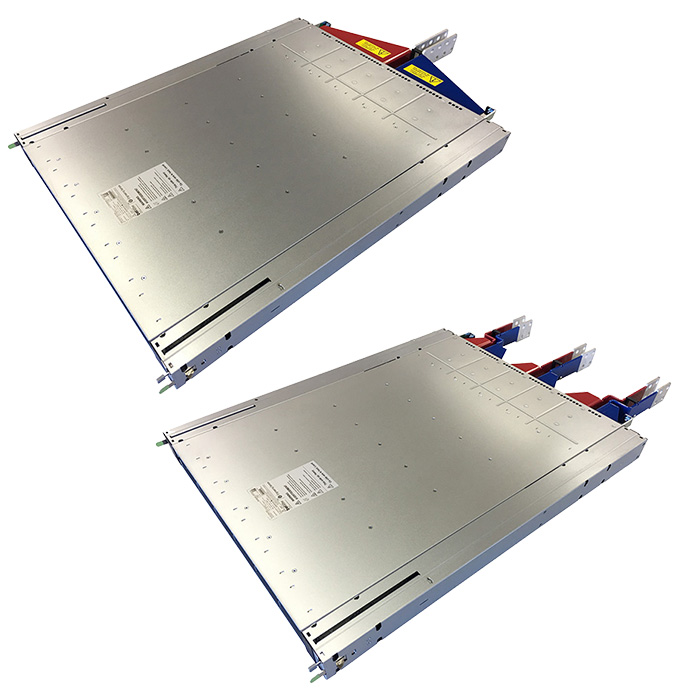

  • Triple/Single straight busbar or Single offset busbar for +12 VDC output
  • Overall dimensions: 535 x 47 x 859.5 mm (21.06 x 1.85 x 33.84 in)

Features

  • RoHS Compliant
  • Modifiable to 19" rack
  • Modules are hot-swap capable
  • Network Attached Controller - optional
  • Over-temperature, output over-voltage and output over-current protection
  • Communication via Ethernet and I2C c/ Power Management Bus

Email Form

SPECIFICATIONS

SPSPFE3-0XG power-shelf solutions provide rectification, system management, and power distribution, while maintaining high reliability and offering flexibility for future expansion. The power shelf can be configured with up to six hot-swap capable PFE3000-12-069RA AC/DC-DC power supplies that convert 3-phase (3W+N+PE) AC mains power into a main output of 12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The shelf… Read More +

Specifications

  • Up to six slots for PFE3000 / PFE3600 / TET3000 PSUs (up to 18 kW)
  • Two 3-Phase inputs (3W+N+PE), one AC inlet powers 3 power modules
  • Input voltage of 200-277 / 346-480 VAC
  • Triple/Single straight busbar or Single offset busbar for +12 VDC output
  • Overall dimensions: 535 x 47 x 859.5 mm (21.06 x 1.85 x 33.84 in)

Features

  • RoHS Compliant
  • Modifiable to 19" rack
  • Modules are hot-swap capable
  • Network Attached Controller - optional
  • Over-temperature, output over-voltage and output over-current protection
  • Communication via Ethernet and I2C c/ Power Management Bus
