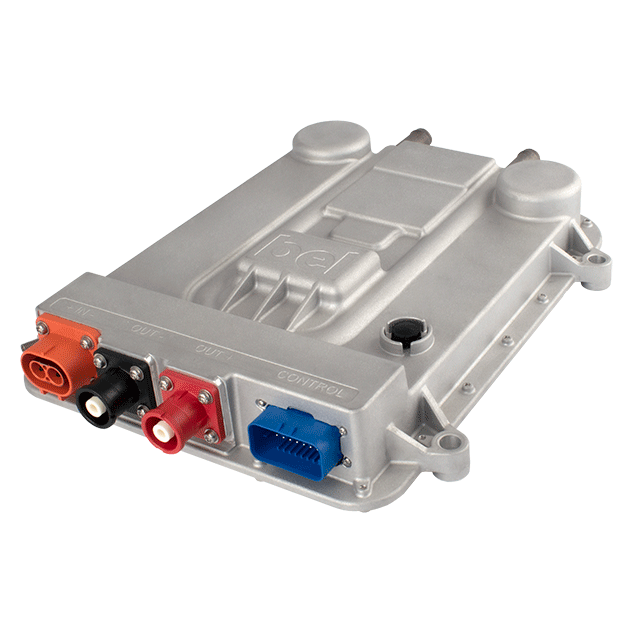

350DNG40-12-8 - Down Converter
Share
Specifications
- Very high efficiency up to 95%
- Input voltage range: 240 – 450 VDC
- Up to 4 kW power
- Output Voltage: 10 - 15 VDC
- Full galvanic isolation between input and output
- E-Mark Certification
Features
- Adjustable output voltage and over current protection
- Liquid Cooled
- IP rating IP67 & IP6k9k
- Optional UDS functionality, CAN FD & Cyber security
- Over temperature, output over voltage and over current protection, input and output reverse polarity protection
Datasheets and Drawings
350DNG40-12-8 Datasheet
EMC Compliance
Technical Documents
Email Form
Specifications
- Very high efficiency up to 95%
- Input voltage range: 240 – 450 VDC
- Up to 4 kW power
- Output Voltage: 10 - 15 VDC
- Full galvanic isolation between input and output
- E-Mark Certification
Features
- Adjustable output voltage and over current protection
- Liquid Cooled
- IP rating IP67 & IP6k9k
- Optional UDS functionality, CAN FD & Cyber security
- Over temperature, output over voltage and over current protection, input and output reverse polarity protection
Email Form
350DNG40-12-8 - Down Converter
| Part Number | Distributor Stock | Drawing/Datasheet | 3D Model | Sample Request | Power (W) | Input Voltage Range (VDC) | Output Voltage (VDC) | Output Current (A) | Operating Temperature (°C) | Cooling Type | Dimensions WxHxD (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 350DNG40-12-8 | cancel |
|
|
4000 | 240 - 450 | 12 | 278 | -40 to +65 | Liquid | 264 x 55 x 355 |
