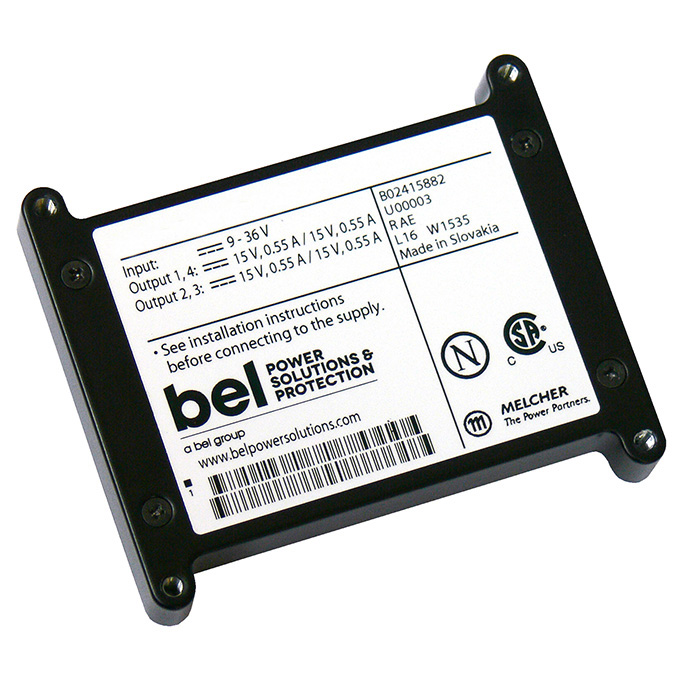

70IMX35D05D12-8IZG
Share
Email Form
Datasheets and Drawings
IMX35 Data Sheet
| Power (W) | 30.8 |
| Output Voltage (VDC) | 5/12/12/5 |
| Output Current (A) | 1.4/0.7/0.7/1.4 |
| Voltage Input (VDC) | 40-121 |
| Operating Temperature (°C) | -40 to 85 |
| Isolation | Isolated |
| Mounting Type | Through Hole |
| Dimensions LxWxH (mm) | 47.8 x 72.8 x 8.9 |
| Length (mm) | 47.8 |
| Width (mm) | 72.8 |
| Height (mm) | 8.9 |
| Number of Outputs | 4 |
| Vout 1 (VDC) | 5 |
| Vout 2 (VDC) | 12 |
| Vout 3 (VDC) | 12 |
| Vout 4 (VDC) | 5 |
| Iout 1 (A) | 1.4 |
| Iout 2 (A) | 0.7 |
| Iout 3 (A) | 0.7 |
| Iout 4 (A) | 1.4 |
| Auxiliary functions and options | Inhibit, Open frame |
| RoHS Compliant | Yes |
